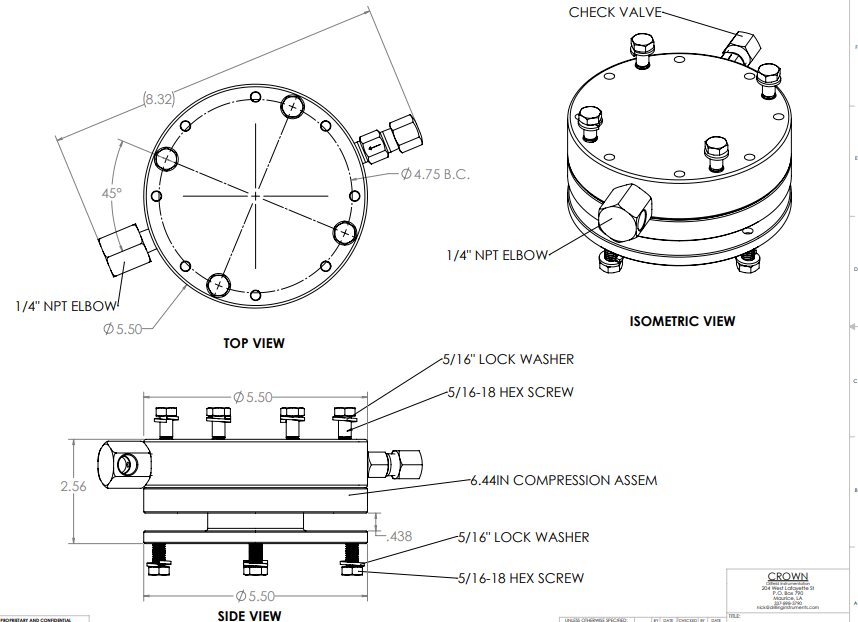

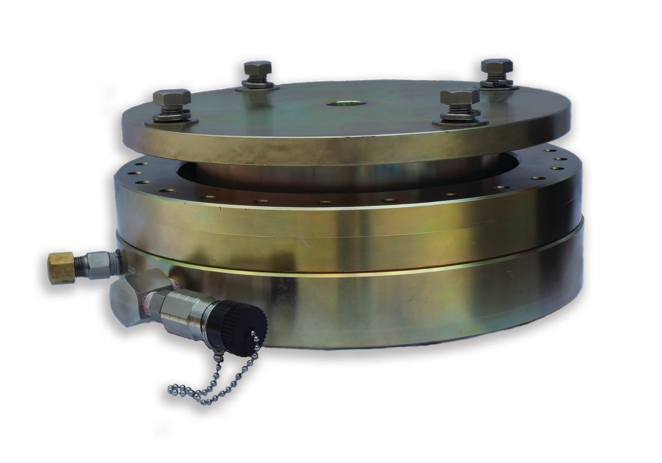

COMPRESSION CELL 6.44 6K LBS CCC100-2

COMPRESSION CELL 6.44 6K LBS

Type: Hydraulic compression (diaphragm style)
Effective area: 6.44 in²
Max capacity: 5,000 lb (datasheet)
Diaphragm: CD204-2
Output/Signal: Hydraulic pressure (no electrical sensing element in cell)
Material / Build: Rugged, field-serviceable diaphragm, gasketed assembly
Temp range: Suitable for wide field temperatures (hydraulic design — no internal electronics)
Mounting: Pancake / compression mount (compact panel/structure fit)
Use cases: Weight indication, tank/scale systems, harsh/outdoor environments

Include

25 FT. HOSE ASSEMBLY 5800 PSI 1/4"
NPT MALE PIPE BOTH ENDS and HIGH PRESSURE MARTIN DECKER
STYLE SCREW TYPE QUICK CONNECT
SET
